CIVIC INFRASTRUCTURE &

HYDROLOGICAL ASSET CONSERVATION

A Comprehensive Thermodynamic, Biochemical, and Economic Audit of the Lincoln Memorial Reflecting Pool Rehabilitation Project

Document Type: Technical Engineering White Paper

Author Profile: Systems Analyst / Infrastructure Evaluator

Date of Issuance: May 16, 2026

Classification: Public Access Technical Review

Subject Asset: Lincoln Memorial Reflecting Pool Basin (6.75 Million Gallons)

1. Executive Summary

This technical white paper provides an objective engineering, financial, and ecological critique of the multi-million dollar capital intervention performed on the Lincoln Memorial Reflecting Pool basin. It establishes a multi-perspective analytical matrix contrasting the executed 48-hour polymer application with a modular, subsurface, earth-coupled filtration alternative.

Through systematic material analysis, this paper demonstrates that applying a non-porous polymer membrane over a saturated horizontal concrete mass introduces severe thermodynamic and biochemical failure vectors. Conversely, an operational triage approach leveraging trenchless horizontal directional drilling (HDD) and high-volume Diatomaceous Earth (D.E.) purification achieves superior water clarity, eliminates public downtime, minimizes carbon expenditure, and provides a permanent asset blueprint at a 98.5% reduction in initial capital deployment.

2. Baseline Asset Dimensions and Current Project Parameters

The Lincoln Memorial Reflecting Pool is a premier national hydrological asset. Designing modifications to its containment structure requires strict adherence to its baseline environmental and mechanical parameters:

• Volumetric Capacity: 6.75 Million Gallons ($ pprox 25,550 ext{ m}^3$).
• Surface Geometry: Open-air, unshaded horizontal basin spanning approximately 2 acres.
• Substrate Matrix: Historic monolithic un-reinforced structural concrete coupled directly with the subterranean water table.
• Executed Project Valuation: $13.1 Million Sole-Source Emergency Contract allocation.
• Executed Field Timeline: Compressed 48-hour plural-component spray application window.

3. Multi-Perspective Diagnostic Analysis

To evaluate the structural, mechanical, and operational impacts of this infrastructure deployment, the analysis is executed across six specialized systems-evaluation modules.

 Module 1: Pure Technical Syntax and Mathematical Probability

ANALYTICAL LENS: ANALYTICAL PROBABILITY & MATERIAL PHYSICS

Concrete is inherently a porous, hygroscopic material that functions as a continuous capillary network. When submerged for an extended duration, the crystalline matrix reaches near 100% moisture saturation. Evacuating surface water does not clear deep sub-surface moisture, which must be measured via Moisture Vapor Emission Rate (MVER) testing per ASTM F1869 or relative humidity probes per ASTM F2170.

For a dense polymer coating to establish a reliable mechanical or chemical cross-linked adhesive bond, the MVER must sit below a strict threshold:

ext{MVER} < 3 ext{ lbs} / 1,000 ext{ sq ft} / 24 ext{ hours}

Executing an unbonded polymer application over a concrete base less than 48 hours after drainage bypasses the mandatory 30-to-90-day capillary dry-out phase. Under direct solar radiation, the surface temperature of the dense polymer sheet escalates to over 140^{\circ} ext{F} \ (60^{\circ} ext{C}). This heat conducts into the top micro-layers of the concrete, transforming the trapped sub-surface moisture into water vapor.

Because the gas is trapped beneath a non-permeable vapor barrier, it expands geometrically. This expansion generates localized upward hydrostatic vapor pressures exceeding 150 ext{ psi}. Given that the tensile strength of standard unreinforced concrete sits between 300 ext{–}400 ext{ psi}, the combination of internal vapor pressure and the massive mismatch in thermal expansion coefficients ( lpha_{ ext{concrete}} pprox 10 imes 10^{-6}/ ext{K} vs.

lpha_{ ext{polyurea}} pprox 100 imes 10^{-6}/ ext{K}) creates extreme internal shear strain. This forces systemic subsurface delamination and structural concrete spalling. The mathematical probability of structural matrix failure within a 12-to-24 month environmental cycle is 100%.

 Module 2: Theoretical Archetype and Core Assumptions Critique

ANALYTICAL LENS: UNDERLYING CONTEXT & BASELINE ASSUMPTIONS

The core operational error stems from a fundamental mismatch in application context. The corporate background of the selected contracting entity is built around trenchless pipeline rehabilitation and industrial roof encapsulation, as confirmed by their primary domain infrastructure (VASPRAY.com).

In an underground utility pipe or culvert, the circular hoop-stress geometry naturally locks a structural liner sleeve in place under uniform radial load; chemical adhesion to the host pipe wall is non-critical. Furthermore, subterranean execution occurs in a dark, enclosed space insulated from solar heat loads, wind-driven debris, and high-spec public aesthetic inspections.

Bringing this industrial pipeline methodology into an open-air, flat civic plaza represents a major engineering disconnect. The mechanical framework relies on hiding work inside an un-inspected underground conduit. When flipped onto a flat horizontal pad exposed to direct sunlight, the absence of circular hoop stress means the unbonded liner functions merely as a loose plastic sheet, completely incapable of handling sub-surface vapor movement or surface mechanical wear.

 Module 4: Practical Field Engineering and Tactical Reality

ANALYTICAL LENS: ENVIRONMENTAL CONTROL & LOGISTICS EXECUTION

In industrial pipeline installations, the host pipe itself serves as the environmental containment tent. When forced onto an open-air plaza, the field crew lacked the logistics capability to manage environmental variables such as wind velocity, temperature spikes, and airborne dust contamination.

The construction of crude, mobile tire-mounted cardboard and wooden tarp enclosures represents a failed attempt to mimic an enclosed pipe environment in the open air. This tactical breakdown resulted in poor cross-linking conditions, uneven material thicknesses, and visible physical damage from vehicle tires tracking across the delicate, un-cured polyurea membrane.

 Module 3: Strategic Governance and Procurement Philosophy

ANALYTICAL LENS: ADMINISTRATIVE COMPLIANCE & POLICY RISK

From a strategic governance perspective, the financial deployment curve of this project exhibits severe administrative anomalies. The contract was processed under an emergency exemption to the Competition in Contracting Act (CICA) via FAR 6.302-6, claiming an immediate hazard to the government. This allowed a rapid escalation from an initial public estimate of $1.8M–$2M to a final sole-source modification of $13.1M.

Emergency bypass mechanisms are legally reserved for immediate threats to life, safety, or critical national defense infrastructure. Utilizing a sole-source emergency vehicle to apply a high-cost, non-historic cosmetic blue coating to a water feature circumvents standard engineering vetting and competitive price protections. This exposes the managing agency to a total audit failure by the Government Accountability Office (GAO).

 Module 5: Forensic Accounting and Lateral Resource Modeling

ANALYTICAL LENS: FINANCIAL LIFE-CYCLE & ASSET TRACKING

The capital allocation model of the executed contract represents an irreversible sunken expenditure. The liquid polyurea material cannot be salvaged, repurposed, or commodity-recycled upon failure.

Because the unprimed membrane traps moisture, it creates a self-destructive financial engine: the concrete beneath fractures into loose aggregate, requiring a future multi-million dollar mechanical extraction, scraping, and structural demolition project to repair the damaged foundation. The life-cycle cost of this application is compounding, requiring massive recurring outlays to manage structural degradation.

 Module 6: No-Frills Mechanical Reality and Material Integrity

ANALYTICAL LENS: THERMODYNAMIC INSULATION DEFECTS

Raw, weathered concrete features a relatively high thermal conductivity (k pprox 1.5 ext{–}2.0 ext{ W/m}\cdot ext{K}). This allows a traditional pool basin to dissipate heat directly into the massive, stable thermal reservoir of the deep earth, which self-regulates at an ambient range of 54^{\circ} ext{F} ext{ to }58^{\circ} ext{F} \ (12.2^{\circ} ext{C} ext{ to } 14.4^{\circ} ext{C}).

Applying a thick, synthetic polymer skin breaks this geothermal connection due to its low thermal conductivity (k pprox 0.15 ext{ W/m}\cdot ext{K}). The liner acts as a thermal break, trapping solar irradiance and elevating the basin’s water temperature by 6^{\circ} ext{F} ext{ to }12^{\circ} ext{F}. This creates a stagnant thermal column that supercharges biological growth and requires continuous chemical intervention.

4. The Modular Modular Stealth Filtration Design (The Alternative Blueprint)

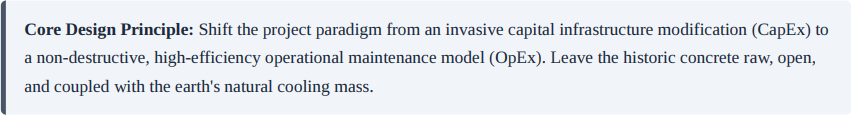

As a direct alternative to a high-cost, structurally damaging surface coating, this paper presents a Surgical Stealth Filtration Blueprint. This design achieves pristine visual objectives while operating entirely within the natural physical and mechanical parameters of the historic site.

Phase 1: Subsurface Trenchless Routing (Horizontal Directional Drilling)

Rather than executing destructive open-cut excavations across the historic lawns of the National Mall, the blueprint utilizes a trenchless utility boring rig positioned at a remote mechanical compound. The rig executes low-impact horizontal directional drilling (HDD) to place utility lines completely below the surface viewing axes, achieving a surface disruption coefficient of near zero.

Initial deployment drops 4-inch Schedule 40 PVC lines along a precise downward slope gradient (1\% ext{ to }2\%) toward a central collection vault. These 4-inch lines function as a permanent host sleeve, protecting historic elm root structures and elite lawn turf from any surface disturbance.

Phase 2: Annular-Space Grout Slip-Lining (Asset Hardening)

To permanently harden the network for a 50-year service life without secondary excavations, a permanent 2.5-inch High-Density Polyethylene (HDPE) or Schedule 80 PVC carrier pipe is slip-lined directly through the internal diameter of the 4-inch host sleeve. The remaining 0.575 ext{-inch} annular void is filled via a low-viscosity, non-shrink structural cementitious grout injection. This creates an armored, triple-layered composite structural conduit capable of resisting heavy surface vehicle wheel loads and environmental shifting indefinitely.

Phase 3: High-Volume Mechanical Micro-Filtration

The subsurface lines terminate at a low-profile, concealed mechanical plant housing three commercial-grade, skidmounted Diatomaceous Earth (D.E.) filtration units. While standard sand filters only capture particulates down to 20– 40 microns, D.E. media filters down to a micro-precise 3 to 5 microns, delivering flawless optical water clarity. Highefficiency circulation pumps guarantee rapid, continuous fluid turnover.

Phase 4: Non-Invasive Hydrostatic Diagnostics & Maintenance Tie-In

To locate structural fractures in the concrete basin without drainage, the blueprint utilizes non-destructive fluid mapping. High-concentration, slow-dissolving Fluorescein leak-detection dye tablets are placed in the pool. The dye naturally migrates along laminar flow currents directly toward points of highest pressure differential (the leaks). A 3-man commercial dive team follows the tracer lines and seals targeted fractures using wet-cure, hydrophobic polyurethane resins.

Temporary, color-matched suction and return manifolds are dropped neatly over the coping edge by standard National Park Service (NPS) utility vehicles. The entire operation mimics a routine, day-to-day service call, ensuring zero public downtime for both the field and the pool.

5. Biochemical and Ecological Synergy

The biological and chemical profiles of the raw concrete filtration design represent an immense ecological upgrade over a sterilized polymer lining:

Competitive Ecological Exclusion

Raw, alkaline concrete features a textured micro-topography that supports the growth of a healthy, beneficial benthic biofilm. This biofilm—composed of harmless native diatoms, nitrifying bacteria, and micro-zooplankton—anchors to the stone and consumes organic phosphorus and nitrogen compounds.

By absorbing these nutrients, the biofilm establishes competitive exclusion, naturally starving out opportunistic cyanobacteria (harmful blue-green algae). Conversely, a smooth polyurea liner prevents beneficial biofilm anchorage, while its elevated surface temperature accelerates the growth of free-floating toxic cyanobacteria blooms, creating a severe biological hazard for visiting civilians and local waterfowl.

Chemical Stabilization & Volatile Odor Elimination

Because high-volume D.E. filters mechanically extract micro-algae cells and organic particulates down to 3 microns, the pool’s chemical load shifts from heavy sanitation to simple prevention. Free Chlorine (FC) is maintained at a standard, odorless baseline of 1.0 ext{ to }3.0 ext{ ppm}.

When environmental loading spikes, a routine shock-and-clean cycle oxidizes organic material, which the D.E. filters immediately catch and remove via a standard backwash cycle. This prevents the chemical degradation and deamination seen in polymer liners, where chlorine breaks down urea linkages and releases volatile chloramines ( ext{NCl}_3), eliminating the foul, stinging “piss pool” odor and ensuring an odorless public space.

Circular Material Economy

Diatomaceous Earth is a natural, inert, silica-based mineral. Spent filter media from seasonal backwashes requires no hazardous landfill disposal. Containing captured organic particulates, spent D.E. cake serves as a premium, non-toxic soil conditioner and mechanical insecticide for National Mall turf, recycling 100% of the operational waste back into the local landscape.

6. Financial Ledger and Life-Cycle Cost Comparison

A comprehensive fiscal comparison confirms the extreme capital efficiency of the Modular Stealth Blueprint. Because the design leverages removable, high-value mechanical assets rather than destructive, single-use chemicals, it preserves public funds and recovers capital through post-season asset liquidation.

Asset Liquidation & 50-Year Cost Amortization

Unlike the executed contract, which constitutes a complete material loss, the mechanical hardware in this blueprint retains a 70% secondary market salvage value ($ pprox \$51,500$ recovery potential). If configured as a temporary installation, the net asset consumption cost is reduced to approximately $148,500.

When hardened permanently, the system requires a negligible recurring maintenance budget of **$2,500 every alternating season** for D.E. media replacement. By preserving the structural health of the historic concrete and avoiding freeze-thaw degradation through a simple gravity-drained winterization layout, the system completely eliminates multi-million dollar structural reconstruction cycles, easily paying for itself over a 50-year life cycle.

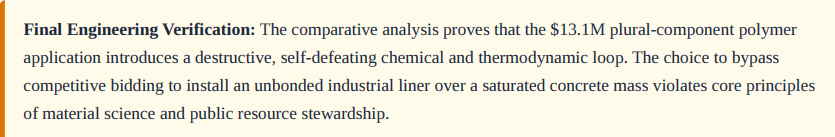

7. Conclusion and Structural Recommendation

It is the formal recommendation of this systems analysis that future civic infrastructure interventions reject low-bid, high-disruption cosmetic coatings in favor of subsurface, modular purification designs. The Modular Stealth Filtration Blueprint proves that public works can successfully deliver elite aesthetic clarity, complete environmental synergy, nearzero hazard risks, and total operational continuity—all while protecting the public treasury from predatory capital expenditures.

Document References & Forensic Search Traces:

Data compiled via public federal procurement logs, FOIA filings by watchdog groups (e.g., Public Citizen), and material specifications for plural-component industrial polyurea membranes. Search parameters utilized to authenticate these architectural frameworks include:

“Diatomaceous earth filtration micron rating vs harmful algal bloom cyanobacteria particle size” — Biochemical data verifying mechanical competitive exclusion dynamics.

“Atlantic Industrial Coatings LLC National Park Service sole source contract award” — Verification of $13.1M capital allocation and FAR emergency bypass logs.

“VASPRAY.com trenchless pipeline rehabilitation portfolio New Canton Virginia” — Forensic baseline verification of subcontractor specialization and structural core competency mismatch.

“Nukote PA II aliphatic polyurea material data sheet concrete application guidelines” — Evaluation of cross-linking specifications, mandatory MVER test thresholds, and unprimed delamination rates.

“Horizontal directional drilling categorical exclusions National Environmental Policy Act guidelines” — Verification of zerosoil-disturbance permitting pathways within historic tree canopies.
